Q Switch ND YAG Laser 1064/532 nm - portabel tatueringsborttagning laser.
Utbildning kan anordnas enligt önskemål.
• Instantaneous blasting high laser technology, international standard of production, technical test strictly imported stone Q-switch cassette mechanism, the entire solid laser, without replacing Q-switch.
• Pulse Energy is up to 500mj and pulse width can reach 10ns.

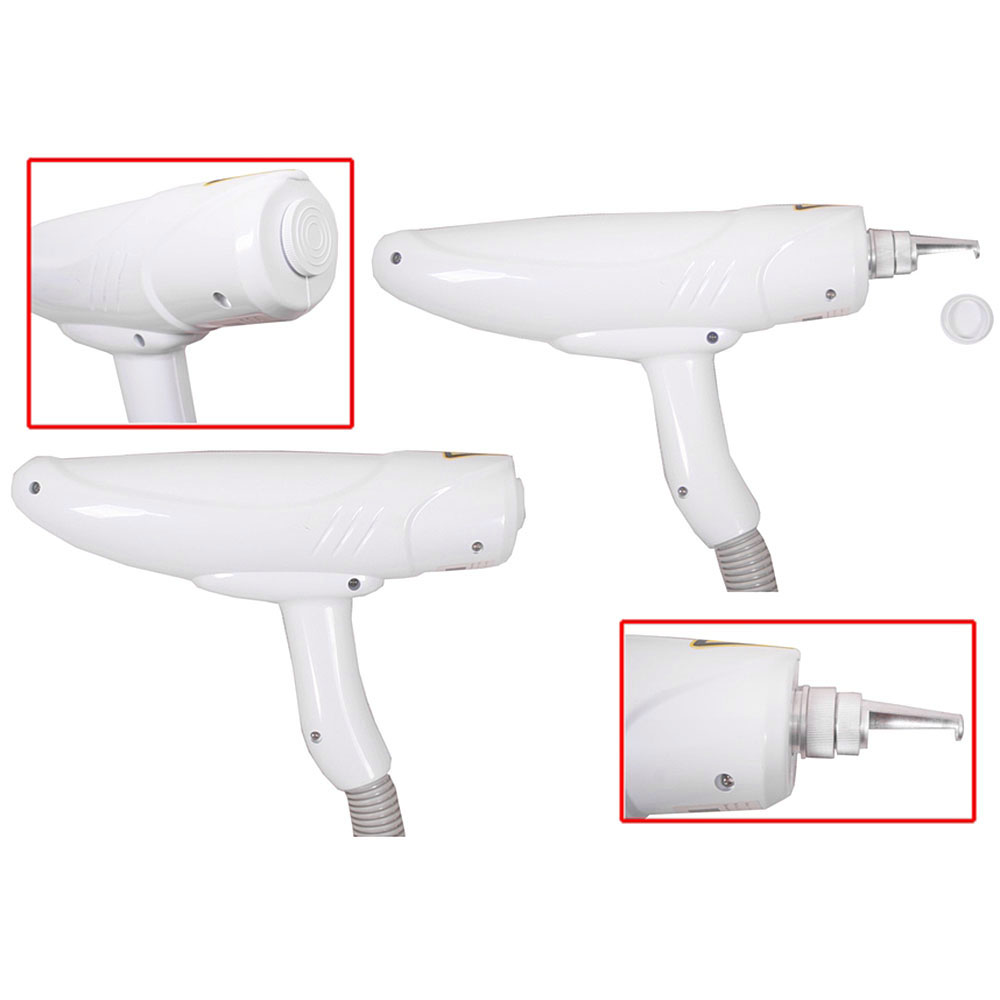

• The laser gun inside is made by porcelain which is anti-high temperature and anti-corrosion. This is much better than glass, such as "Poly Compound" which will release TOXIN under high temperature. Until now, porcelain is still the best and stable material for laser gun.
• The operation interface of whole English LCD screen, computer monitor, the temperature and pressure of the water warning system.
• Two systems of circuit preventing wrong operation.

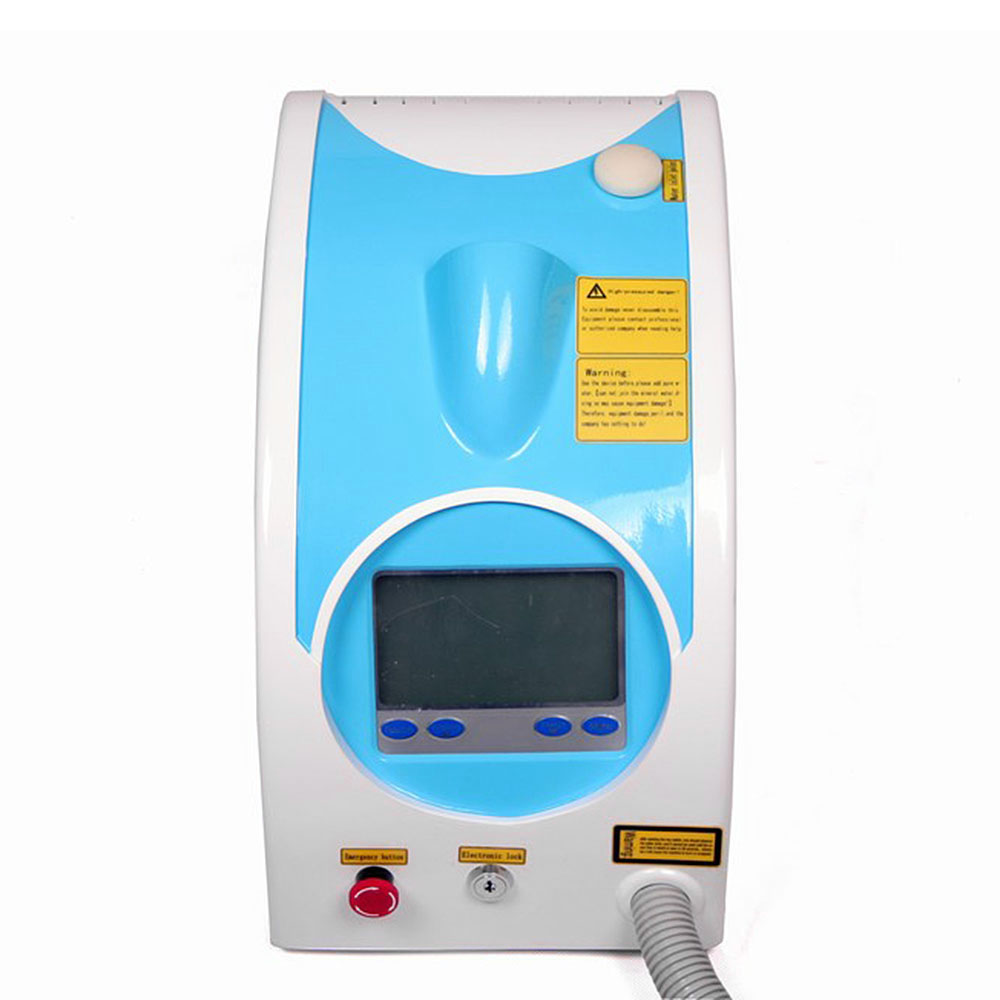

UPDATED Professional Q Switch YAG Laser Machine
ND: YAG Laser Cosmetic System introduces gem-adjusting Q switch, which uses high energy by instant emission of laser beam to crush and remove the pigment effectively in the pathologically changed tissues. That is an explosion led by laser beam: the laser beam at the fixed wavelength enabled by the accumulated high energy can reach the pathologically changed tissues through epidermis in a very short time to instantly crush the respective color base, then the corresponding pigment group gets swollen and outburst at last due to high energy, and part of the pigment group springs out of the human body (at shallow epidermis), and the rest (at basis tissues) pigment group will become very small particle before swallowed by the human cell which will be finally discharged out of the human body through lymphatic system circulation. The pigment of the pathological tissues will fade in color till it vanishes. And the surrounding normal tissues will not be ruined since they will not absorb the laser at that fixed wavelength.
The system gem-adjusting Q switch can effectively cure the mixed pigments by pigment precipitation of extraneous source with pathological pigment change of endogenous source, inclusive of erroneous dark eyebrow-embroidery, lip-embroidery, lip-soak, eye line-embroidery, lip-line, tattoo (inclusive of tattoo by extraneous wounds), pigment precipitation by sensitive source, freckle on female's face (male's), coffee spot, old age spot, black mole, and birthmark in black, blue, purple, brown, red and etc. Treatment course for different illness case as follows:
Treatment course required( cure times)
Treatment course interval
eyebrow-embroidery (eyeline grain)
1 –2 times / 30-60 days
Eyebrow-embroidery (eyeline embroidery)
1-3 times / 45-60 days
Lipline (red dyed lip)
1-3 times / 15-45 days
Tattoo ( caused by extraneous wounds)
1-4 times / 30-60 days
Freckle, old age spot
1-4 times / 15-30 days
3-7 times / 45-90 days
• Laser type:Q-switch Nd: YAG
• Laser output wave length:1064nm/532nm
• Maximum energy density:15mJ/cm2
• Pulse Energy:200-500mj
• Pulse Width:10ns
• Recurrence Rate:1, 2, 3, 4, 5hz
• Spot Size:3-6mm
• Cooling system:wind and water cooling system

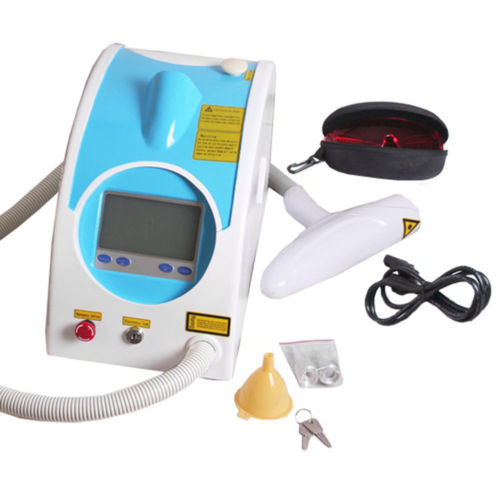

Machine Body X 1

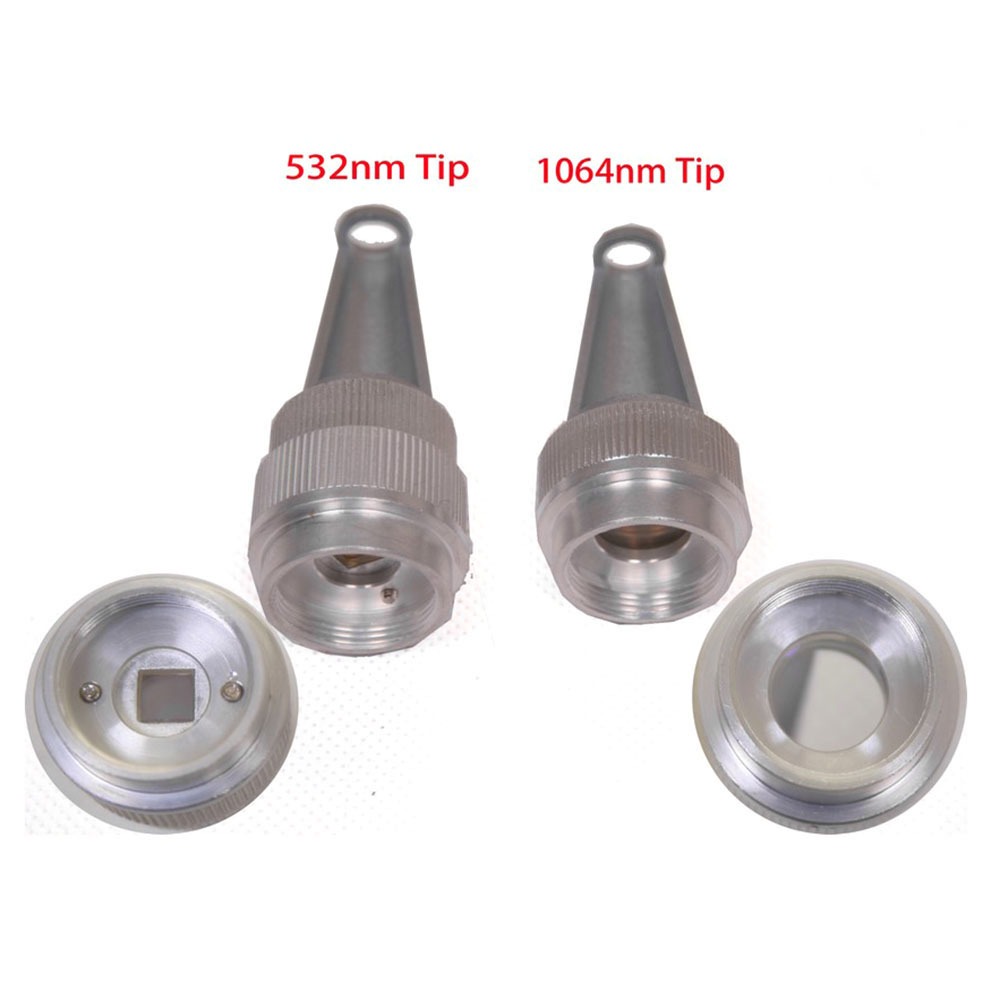

532nm tip X 1
1064nm tip X 1

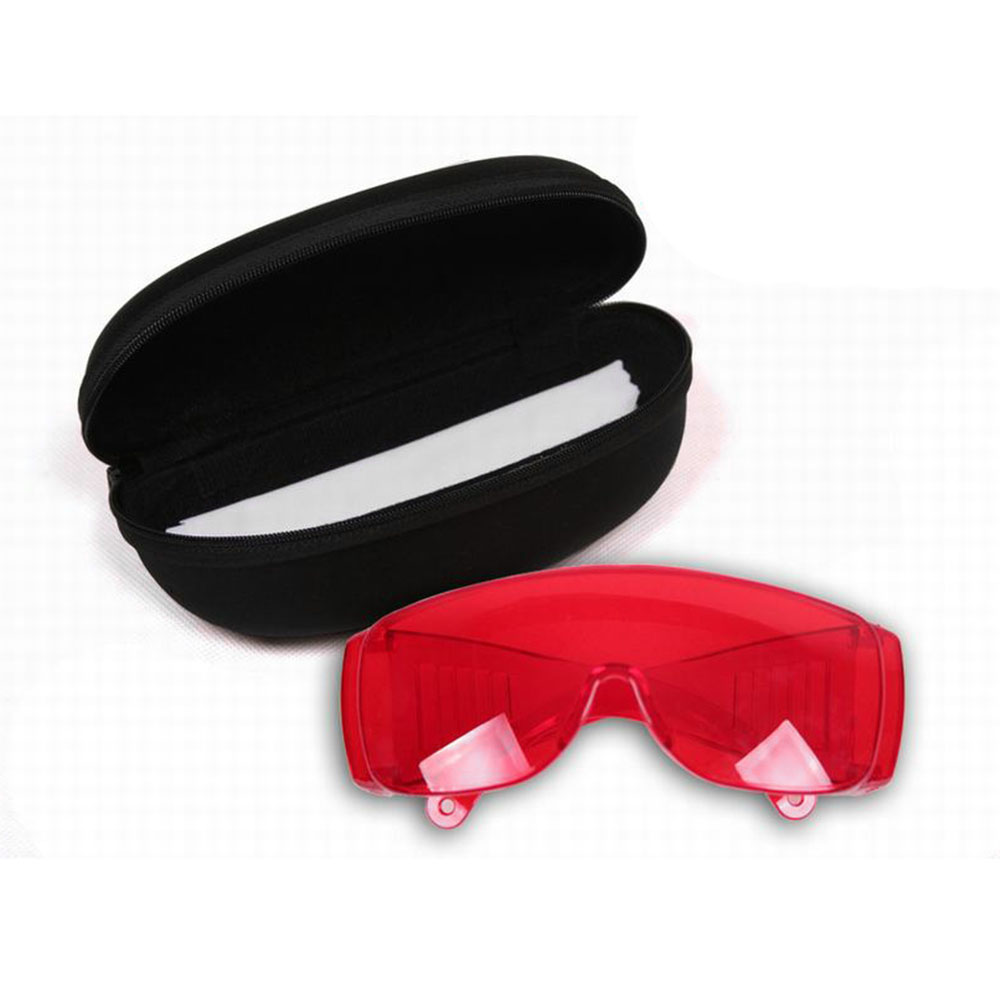

Protective Goggle X 1
Key X 2
Power Cord X 1
Full Detailed English Manual/Instructions X 1
Water Funnel X 1
Package Box X 1
